www.lighttoolsupply.com

Thursday, December 23, 2010

Jet 7" x 12" Horizontal / Vertical Bandsaw



Stock Number: 414459    $1,049.00
Order here http://www.lighttoolsupply.com/


The JET HVBS-7MW Metalworking Bandsaw is UL listed and powered by a 3/4 HP motor. 4 large diameter wheels and built in handle allow easy movement. Each HVBS-7MW comes equipped with a 3/4” carbon steel blade, adjustable material stop and vertical worktable. Worried about safety? Don’t – the HVBS-7MW shuts off automatically after each cut.
Details
UL listed motor
Heavy cast iron bow and bed
Hydraulic downfeed for ease of cut
Hardened and ground worm gear
Roller cabinet with built-in chip tray
Automatic shut-off after cut
STANDARD EQUIPMENT
Vertical worktable
Coolant system
3/4" Bi-metal blade

Part Number414459
Motor3/4 HP 115/230V 1 Ph Prewired 115V
Round at 90 Degrees (in.)7
Round at 45 Degrees (in.)4-1/2
Rectangle at 90 Degrees (in.)2" (H) x 12" (W) / 7" (H) x 10-7/8" (W)
Blade Size (in.)3/4 x .035 x 93
Blade Speeds (SFPM)86, 132, 178, 260
Bed Height (in.)23
Vertical Work Table Size (in.)9-3/8 x 10
Vise Swivels (deg.)45
Blade Length (in.)93
Rectangle at 45 Degrees (in.)7" (H) x 3-1/2" (W) / 5-1/2" (H) x 4-1/2" (W)
Throat Depth (in.)7
Model NumberHVBS-7MW
BrandJet
Overall Dimensions20-1/2 x 49-1/2" x 38"
Height40.1 inch
Width17.8 inch
Length50.5 inch
Net Weight286 pound


#Mitutoyo #Digimatic #Micrometers 0-1" thru 0-4" on sale at Light Tool Supply.

Light Tool Supply

#Mitutoyo #Digimatic Micrometers 0-1" thru 0-4" on sale at Light Tool Supply.
A New look. A New Feel. A New Generation. A New Higher level of water and dust protection. Same great quality and precision.


  • Two measuring modes - Absolute and Incremental for efficient measurement.
  • .00005"/0.001mm resolution.
  • Carbide tipped measuring faces.
  • Functions available: origin setting, Inch/mm selection, Zero-setting, Data output/hold.(output models only).
  • Battery life: Aprox 1.2 years under normal use.
 Mitutoyo
Coolant Proof Micrometer Series 293-with Dust/Water Protection Conforming to IP65 Level
Series 293
FEATURES:



  • IP65 protection level, enabling use in
    environments exposed to cutting oil, etc*.
    *Anti-corrosion treatment is required after use.

  • Measurement data output function is
    available with a water-resistant connection cable.

  • Auto power ON/OFF function. • Certificate of inspection* is included.
    (50mm/2” or less range models) *It is not the type used to obtain
    calibration certificates.

  • With a standard bar except for 0-25mm/0-1" model.

  • Supplied in fitted case. Plastic case up to 150mm/6",
    Wooden box over 150mm/6"

    Technical Data
    Accuracy: Refer to the list of specifications.
    Resolution: 0.001mm or .00005"/0.001mm
    Flatness: 0.3µm/.000012”
    Parallelism: 1µm/.00004” for models up to 50mm/2”
    2µm/.00008” for models up to 100mm/4”
    3µm/.00012” for models up to 175mm/7”
    4µm/.00016” for models up to 275mm/11”
    5µm/.0002” for models over 300mm/12”
    Measuring faces: Carbide tipped
    Display: LCD
    Battery: SR44 (1 pc.), 938882
    Battery life: Approx. 1.2 years under normal use
    (8 months: over 100mm models)
    Dust/Water protection level: IP65
    Function Origin-set, Zero-setting, Automatic power on/off, Data hold,
    Data output, inch/mm conversion

  • Wednesday, December 22, 2010

    2HP, 20 Gallon Portable Horizontal Air Compressor

    2HP, 20 Gallon Portable Horizontal Air Compressor $$239.40-$525.90
    Order at Light Tool Supply

    Jupiter Pneumatics - Portable Horizontal Air Compressors - Electric
    Excellent Quality & Affordability
    Model: 67-830-0, Mfr #: 32010045HTJP
    • 1.5 Running HP 4 gallon twin stack compressor
    • 3450 RPM
    • Direct drive oil lubricated
    • 5.1 CFM @ 90 psi.
    • Max psi: 125
    • 13 Amp
    • Includes: Regulator, quick coupler and chrome-plated pressure gauges
    • Metalic silver powder coat finish
    Model: 67-831-8, Mfr# 35010655HTJP
    • 1.5 running HP 6.5 gallon portable horizontal compressor
    • 3450 RPM
    • Direct drive oil lubricated cast iron pump
    • 5.1 CFM @ 90 psi.
    • Max psi: 125
    • 13 Amp
    • Includes: Regulator, quick coupler and chrome-plated pressure gauges
    • Metalic silver powder coat finish
    Model: 67-832-6, Mfr #: 35015020HTJP
    • 2.0 running HP 20 gallon portable horizontal compressor
    • 3450 RPM
    • Direct drive oil lubricated
    • 5.5 CFM @ 90 psi.
    • Max psi: 125
    • 14 Amp
    • Includes: Regulator, quick coupler, 8" rubber wheels and removable handle
    Model: 67-833-4, Mfr #: 35002020HTJP
    • 2.5 running HP 20 gallon portable horizontal compressor
    • Oil libricated belt drive
    • 5.8 CFM @ 90 psi. for 120V
    • 7.0 CFM @ 90 psi. for 220-240V
    • Max psi: 150
    • 15 Amp
    • Includes: two ports with quick coupler, 8" pneumatic wheels, tank drain ball valve, chrome-plated pressure gauges and oil sight gauge


    Tuesday, December 21, 2010

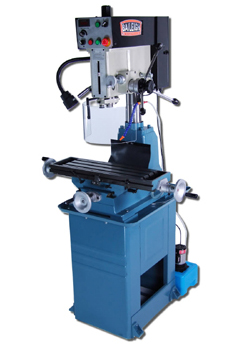

    Baileigh VMD-30VS 30" Inverter Driven Vertical Mill Drill






    Baileigh VMD-30VS 30" Inverter Driven Vertical Mill Drill  $
    Order at http://www.lighttoolsupply.com

    Vertical Mill - Drill Press



  • The VMD-30VS variable speed vertical mill/drill press has a very wide column to eliminate flexing when milling or drilling at full capacity.

  • The base and table are made from a very rigid casting adding to the strength of this 1-1/8” maximum capacity drilling machine.

  • The inverter driven head allows the machinist or fabricator to run tooling at the proper speed for each mill, drill or tap size available.

  • Running at the exact speed extends tooling life, something that can’t be accomplished on other mill/drills.

  • The DP-30VS drill press also comes standard with a coolant system, guarding, R8 spindle taper and a halogen light.

    Specifications:


  • Drilling Capacity: 1-1/8”

  • Tapping Capacity: M16

  • Face Milling Capacity: 3”

  • Spindle Taper: R8

  • Swing: 10.75”

  • Spindle Travel: 5.9”

  • Quill Diameter: 2.95”

  • Spindle Nose to Table: 19.7”

  • X-Axis Travel: 14.5”

  • Y-Axis Travel: 6.67”

  • Table Size: 28.75” x 8.25”

  • T-Slots: 5/8”

  • Spindle Speeds: 150-2500 RPM

  • Motor: 2HP

  • Coolant Motor: 1/8HP

  • Shipping Size: 60” x 44” x 68”

  • Shipping Weight: 616lb

  • Monday, December 20, 2010

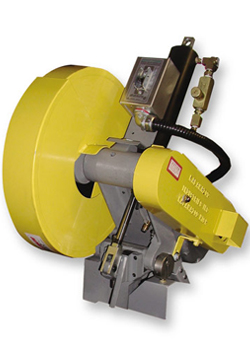

    Kalamazoo 14" Semi-Auto Non-Ferrous Saw Head

    Kalamazoo 14" Semi-Auto Non-Ferrous Saw Head

    Model HS14ASPH order at http://www.lighttoolsupply.com

    Kalamazoo HS14ASPH  14″Semi-Auto Non-Ferrous Saw Head


    Features:



  • 12-14″ blade,1″arbor

  • Non-ferrous arm assembly

  • Semi-automatic

  • Air/oil down feed ,0-12 fpm

  • 5 hp,3 ph (220/440 volt 60 hz)

  • OSHA guard for carbide blades

  • 1″ arbor, LH thd.

  • Spindle RPM 4400

  • 4 bolt mount

  • Manual switch

  • Please specify voltage

  • Wt: 240 lbs

  • Haimer Universal 3-D Taster Alignment & Positioning Indicator

    Haimer Universal 3-D Taster Alignment & Positioning Indicator

    Order at http://www.lighttoolsupply.com


  • Provides a simplified method for centering workpiece or fixtures on horizontal or vertical machines, external or internal diameters-also with NC, EDM and other hard to turn spindles.

  • Used on conductive as well as non-conductive workpieces.

  • Accurately locates center of holes or shafts of any diameter, even grooved.

  • Measures all 3 axes on milling machines.

  • Can measure flatness.

  • Made in Germany
    Features:

  • Clamps into milling spindle or electrode head.

  • Interchangeable sensor inserts, without tools.

  • Face of indicator remains stationary in any desired position while machine spindle rotates, allowing the operator to accurately position machine table.

  • Travel range: .175" in all 3 axes.

  • .200" sensing tip.

  • Radial run-out compensation.

  • 3/4" dia. shank, 2" dial diameter.

  • Haimer Universal 3-D Taster Alignment & Positioning Indicator

    Sunday, December 19, 2010

    Kennedy Maintenance Chest & Carts Model 315X on Sale at Light Tool Supply for $1,095.00.

    Kennedy Maintenance Chest & Carts Model 315X on Sale at Light Tool Supply for $1,095.00.
     Order at Light Tool Supply http://www.lighttoolsupply.com

    5X 15-Drawer Maintenance Cart
    Made of 16 gauge steel. Huge 39" x 18" work surface, full-width drawer pulls and tubular side handle for ease of handling. Two keyed-alike, high security tubular locks and four 5 x 2" sintered bearing castings standard. Models 31- and 315 come standard with ball-bearing drawer slides. Choice off brown wrinkle or smooth red finish.

    Saturday, December 18, 2010

    SR-2420M Manual Slip Roll

    SR-2420M Manual Slip Roll

    Order at http://www.lighttoolsupply.com



    SR-2420M Manual Slip Roll
    Forming Width 24"
    Mild Steel Capacity 20GA
    Roll Diameter 2"
    Wire Grooves 3
    Minimum Forming Radius 1"
    Weight (Lbs) 165
    Wire Groove Sizes:
    1 .400"
    2 .325"
    3 .250"

    The SR-2420M slip roll is the perfect slip roll for anyone who needs an inexpensive machine that will roll up to 24 inch wide, 20 gauge sheet metal. This machine will roll arches, cylinders and cones out of sheet metal with a minimum forming diameter of 3 inches. This machine has 3 wire grooves that allow for rolling of wire or rod. This sheet metal bender is a light weight slip roll great for small projects or is perfect for bringing between job sites.
    For rolling sheet metal simply place the unbent piece into the bender and bring the back roll up to the desired position, then start your bend. This sheet metal bender is easy to adjust and operate, making it a pleasure to work with. Simplicity and rigidity define the SR-2420M roll bender.


    Click here for a video of the Baleigh Slip and Plate Rolls



    Thursday, December 16, 2010

    28th Editions Machinery's Handbook

    28th Editions Machinery's Handbook

    “The Bible of The Mechanical Industry for 125 Years”

    Revised Material...Properties, Treatment and Testing of materials,
    Dimensioning, Gaging and Measuring, Tool and Toolmaking,
    Manufacturing process. Updated Standards and Broad Math Coverage.


    2899-9 28th Edition Handbook Guide 260 Pages $11.65

    2838-8 CD ROM & Large Print Edition $135.00

    2828-9 CD ROM & Toolbox Edition $122.50

    2888-3 CD_ROM 28th Edition $69.95

    2801-2 Large-Print 28th Edition
    7"x10" 2,640 pages, thumb index
    $79.95

    2802-9 Machinery's Handbook Pocket Companion $16.50

    2800-50 Original "Toolbox" 28th Edition
    5"x7" 2,690 pages, thumb index
    $59.95

    Wednesday, December 15, 2010

    Meet the Dremel Trio

    Meet the Dremel Trio

    Watch the video on here on Foxnews

    On Sale now at Light Tool Supply

    Click link to order http://www.lighttoolsupply.com




    e Dremel Trio:

    The Dremel Trio allows users to cut, sand and rout using one multi-purpose tool. Cut multiple materials including wood, plastic, drywall, sheet metal, wall tile and more without switching tools. The tool’s unique, 360-degree cutting technology and plunge-cut ability allows users to make quick and controlled cuts, while its unique, 90-degree pivoting handle facilitates added control, comfort and accuracy.




  • Start your cut wherever you want because Dremel Trio cutting bits let you make quick and easy plunge cuts anywhere in the workpiece







  • The pivoting handle on the Dremel Trio can be positioned straight-up or at a 90-degree angle for superior tool control and maximum comfort







  • The multi-purpose cutting bit included with the Dremel Trio lets you cut a variety of materials using only one bit







  • Note: The Dremel Trio uses only Trio accessories. Dremel rotary tool accessories are not compatible with the Trio tool.

    Features:







  • 360-degree cutting technology allows you to make cuts in any direction while keeping the tool in the same orientation. Or, you can follow the cut line like a regular saw...its up to you







  • The high-speed spiral cutting action makes clean cuts with smoother edges that require less sanding







  • 90° pivoting handle for superior comfort and control







  • On board dust extraction port to maintain a clean workplace







  • Non-marring base to protect delicate work pieces







  • Telescoping foot for accurate depth control while cutting, sanding and routing







  • 10,000 - 20,000 RPM variable-speed switch for greater versatility and optimal control







  • Lock-on button for comfort during extended use

    6800-01 Trio Tool Kit







  • The multi-purpose cutting bit included with the Dremel Trio lets you cut a variety of materials using only one bit







  • The pivoting handle on the Dremel Trio can be positioned straight-up or at a 90-degree angle for superior tool control and maximum comfort







  • Note: The Dremel Trio uses only Trio accessories. Dremel rotary tool accessories are not compatible with the Trio tool.

    Kit Includes:







  • Trio Tool







  • TR800 Straight Edge/Circle Guide Attachment







  • TR563 Trio High Speed Cutter (Carbide)







  • Trio Mandrel TR407







  • TR408 ½” 60 grit sanding band (2)







  • TR432 ½” 120 grit sanding band (2)







  • TR445 ½” 240 grit sanding band (2)







  • TR654 1/4" Straight Router Bit







  • Wrench







  • Storage Case







  • Owner's Manual

    Specifications:







  • Collet Capacity:  3/16"







  • Cord Length:  6"







  • Speed:  Variable (10,000 - 20,000 RPM)







  • Voltage:  120V ~ 50 -60 Hz







  • Warranty:  2 years







  • Weight (lbs.):  2.8 lbs (1,27 kg)






  • Tuesday, December 14, 2010

    Lowest price on web for The PRO3600 Digital Protractor Level at Light Tool Supply

    Lowest price on web for The PRO3600 Digital Protractor Level at Light Tool Supply
    http://www.lighttoolsupply.com

      SPI TRONIC Digital Level PRO 3600 with 0.01° Resolution and SPC Output
    SPI TRONIC Digital Level PRO 3600 with 0.01° Resolution and SPC Output

    SPI TRONIC Digital Level PRO 3600 with 0.01° Resolution and SPC Output

    $38.00 - $307.70

    Item # Description Price Quantity
    31-029-2 Data Lugger Software $49.95
    KS-5571 Magnetic Base Attachment $69.50
    31-040-9 Pro 3600 Digital Level with case 0.01º Res. $307.70
    31-038-3 Pro-360 Digital Level 0.1º Res. $174.75
    31-042-5 Replacement Case for 31-040-9 $38.00
    31-041-7 SPC Cable with Foot Switch $139.00
    990-679-1 USB converter for Footswitch Digital Level $125.00



  • Multi functional level, protractor and inclinometer.







  • Measures full 360º, 0º to 90º in each quadrant, with standard counter clockwise rotation.







  • Large clear LCD display instantly shows level, true vertical and any angle between.







  • Additional features include a hold button freeze for convient out of sight measurements, a v-groove on the top plate for accurate registration on curved or cylindrical surfaces and tapped No, 6 -32 holes in base for plate for special mountings.







  • reset plus Superset self calibration modes.







  • Uses standard 9V alkaline battery (included).







  • Plastic case included.

    Note: *Foot switch (31-041-7) - Connects to a computer for statistical process control and allows reading to be sent when foot switch is depressed. Includes foot switch, 9 pin female connector with a 4' cable and 8' cable that connects to the level. Please inquire for custom cable lengths.





  • Sunday, December 12, 2010

    #Thiago #Alves wins in UFC 124 with a unanimous decision, 30-27 on all cards against John Howard

    Husky Tools teams up with MMA Fighter Thiago Alves who won his fight at UFC 124

    Thiago Alves wins in UFC 124 with a unanimous decision, 30-27 on all cards against John Howard


    Thiago Alves wins in UFC 124 last night and credits Mike Dolce and he "Dolce Diet" for helping him come to the fight ready and at proper weight.  He previously has had some trouble in the past and has shown up for fights looking drained as if trying too hard to make weight.  He has previously stated that he has starved himself for weeks prior to fights to make the 170-pound welterweight division  The "Dolce Diet" seemed to do the trick as Thiago Alves came ready to fight and looked like a beast ready to smash some skulls.
    Last night Thiago Alves picked up a unanimous decision, 30-27 on all cards for the win against John Howard

    And here is Thiago Alves is wearing Husky Tools on his shorts.  Husky is now sponsoring this MMA Champ.

                                                photo by Ken Pishna http://mmaweekly.com

                                                photo by Ken Pishna http://mmaweekly.com



                                                Michael Elson
                                                President of Light Tool Supply
                                                Winner at Grapplers Quest
                                                Trained at http://www.bwarrior.com

    If Husky is looking for another person to sponsor how about the President of Light Tool Supply , Michael Elson?  I am ready!  LOL.

    Looks like more Tool Companies are sponsoring MMA fighters these days.  It think it is a good match and smart of the big manufactures to take notice.  The latest is Husky Tools and Thiago Alves.  I always love watching Thiago Alves fight.  I am looking forward to seeing him wearing the Husky logo on his shorts.  It most certainly is good for The Tool Industry getting more exposure.  People who buy tools spend money and they also seem to like sports like Mixed Martial Arts.  Good luck Thiago and smart move by Husky picking a talented member of The MMA Community to represent their products.






    Husky Tools teams up with MMA Fighter Thiago Alves
    DEERFIELD BEACH, FLa. (Dec. 3, 2010) – On Dec. 11, 2010 in Montreal, Canada, Welterweight MMA Artist Thiago Alves will sport the Husky Hand Tools logo on his shorts as he takes on rival John Howard.

    Husky Hand Tools aligned itself with Alves because of the similarities in traits between the brand and the fighter:  hard working, diverse and powerful.

    “Because of all the upfront hard work and innovative powerful designs, Husky Hand Tools and Accessories continue to deliver reliable performance that helps to make tough jobs easier” said Iron Bridge Tools Karen Gough.  “Just like when you use a Husky Hand Tool, in Mixed Martial Arts success comes by combining power with finesse and reliability; and that is also the winning combination you get with the passionate and committed Thiago Alves.”

    Thiago Alves, a native of Brazil and current resident of Coconut Creek, FL has been a winning MMA Fighter for 12 years. With a 22-5-0 record, Thiago a UFC and AFC Veteran, has been King of the Cage, Mass Destruction Champion, Reality Fighting Champion, Shooto America Veteran, 3X Brazilian State Champion Muay Thai, and more.  Alves, a determined and ardent winner overcame a potentially career ending health issue earlier this year,  and through a comprehensive new diet and strengthening workout schedule, Alves is back to top form and ready to win the December 11th match up!

    Innovative, Reliable and Hard Working…that Means Husky Hand Tools and Thiago Alves!

    About Iron Bridge Tools and Husky
    Founded in 2006, Florida based Iron Bridge Tools has quickly become a worldwide marketer of innovative and top-quality hand tools and accessories. With offices throughout the United States and in China, Iron Bridge Tools produces branded and custom label tools available in leading retailers across the globe, including products marketed under the Husky line of hand tools, available exclusively at The Home Depot.  Husky products are well known for their quality, unique designs, durability and affordability.

    Friday, December 10, 2010

    Kalamazoo K10WBT Wet Abrasive Benchtop Saw

    http://www.lighttoolsupply.com



    Kalamazoo K10WBT Wet Abrasive Benchtop Saw
    Kalamazoo K10WBT Wet Abrasive Benchtop Saw
    Kalamazoo K10WBT Wet Abrasive Benchtop Saw

    Features:

    • Manual operation
    • Magnetic switch
    • Dual 3” vises
    • Capacity: 1.5” solids, 2.5” pipe
    • Internal lite
    • Coolant & pump
    • Dual coolant nozzles
    • 5/8″ LH spindle arbor, optional: 1.250” or 32mm
    • T-Slot Table
    • 10″ Diameter abrasive blade (not included)
    • Dimensions : L 24″ x W 24″ x H 24″
    • Capacities: 1.5″ solids, 2.5″ pipe
    • Made in USA!

    Kalamazoo DCV-4 Dust Collector for Small Sanders

    Model: DCV-4
    http://www.lighttoolsupply.com

    Kalamazoo DCV-4 Dust Collector for Small Sanders

    Kalamazoo DCV-4 Dust Collector for Small Sanders
    Features:
    • Dust collector used with 2FSM, S4S and DS10.
    • 1PH, 110volts only.
    • Capacity 100 CFM.
    • Dust bag furnished with each unit
    • Dimensions:L12″ x W14″ x H32″
    • Model: DCV-4
    Kalamazoo DCV-4 Dust Collector for Small Sanders


    kalamazoo AV-18 Air Vise

    kalamazoo AV-18 Air Vise
    http://www.lighttoolsupply.com
    kalamazoo AV-18 Air Vise

    kalamazoo AV-18 Air Vise
    Features:
    • Fits 10″ – 18″ straight cut saws
    • Requires 0 – 100 PSI air

    Thursday, December 9, 2010

    Gaging Tips

    To order Mahr/Federal Tooling go to http://www.lighttoolsupply.com

                                                                 http://www.mahrfederal.com/

    3, 2, 1, CONTACT - MEASURING THICKNESS
    George Schuetz, Mahr Federal Inc.

    Thickness is one of the most frequently measured dimensions, and also one that is very easy to understand.  So you might think that someone would come up with a one-style-fits-all measurement approach good for just about every kind of thickness application, but it just isn’t so.  There are many approaches to measuring thickness, depending on the requirements of the part.
    Some of the most common include: micrometers, thickness gages, air thickness gages and motorized gages with many variations of each.  They range in price and complexity from a few hundred dollars for a standard handheld tool, to a few thousand dollars for ones that are custom-built for the application.  One important consideration that makes each of these solutions different from the others is the way the gage makes contact with the part.
    Whether it's the thickness of a piece of sheet metal, a silicon wafer, a latex glove or photographic film, we are usually talking about measuring the distance between two parallel surfaces.  Accurately determining the length of a line that is perpendicular to two parallel surfaces has everything to do with how the gage makes contact with the part.
    Micrometer.  A handheld micrometer is a simple low-cost method for measuring the thickness of a piece of sheet metal, for example, which is relatively stiff and thick.  It certainly provides a lot of measurement range.  With flat and parallel contacts and constant gaging force applied with the friction or ratchet drive, the micrometer can self-align to the part for a fast and accurate reading.  A potential problem with the self-aligning flat contacts of the micrometer is that they can bridge across and "average out" minute variations in thickness.  So if higher resolution is required, you should look for a different approach.
    Thickness Gage.  The portable thickness gage raises the ante on resolution by combining a flat anvil-type reference surface on the bottom with a radiused (ball) measurement contact on top.  Making a single point measurement eliminates the possibility of gage error that could be caused by faulty parallelism of the contacts.  This would be a good gage for a narrow strip of photographic film where a spot check of thickness is required.
    Air Thickness Gage.  In some cases the part may be so susceptible to scratching or marring that any amount of gaging contact could destroy the part.  An air thickness gaging system directs thin, precision-aligned, opposing streams to each side of the part which is held perpendicular to the air streams on a ground base.  The gage measures back pressure on each of the air streams.  Since the back pressure is directly proportional to the distance between the contact point and the nozzle, it is easy for the gage to automatically calculate thickness.  This non-contact technique provides a means of sliding the part around for measuring thickness variation.  The air provides enough cushion to help float the part as it is repositioned.  The use of differential probing provides fast, accurate measurement regardless of where the part is positioned.  Most importantly, the part is not damaged by the gage contacts.
    Custom Thickness Gage.  Many soft, compressible parts have rigid, standardized specifications for how they are to be measured.  In such cases the design of custom gages will frequently take into consideration the size and shape of the contact along with the gaging pressure applied to the part.  Usually the gaging pressure is defined as a dead load weight to assure constant force over the full range of measurement.  However, with some compressible materials, such as paper or latex rubber, the amount of time that the load is applied to the part will also affect the reading from the gage.  In these cases, the gage may incorporate a motorized measuring contact along with the cam actuated device to retract the contact after a specific period of time.  This uniform load and dwell measurement prevents the parts from deforming and setting.
    As you can see, the method of probe contact is a very helpful way to consider how to set up thickness gaging systems across a wide range of applications.  Choosing the right approach can dramatically decrease the chance of inadvertently making a bad measurement.


    Monday, December 6, 2010

    Husky Tools teams up with MMA Fighter Thiago Alves who won his fight at UFC 124

    Thiago Alves wins in UFC 124 with a unanimous decision, 30-27 on all cards against John Howard


    Thiago Alves wins in UFC 124 last night and credits Mike Dolce and he "Dolce Diet" for helping him come to the fight ready and at proper weight.  He previously has had some trouble in the past and has shown up for fights looking drained as if trying too hard to make weight.  He has previously stated that he has starved himself for weeks prior to fights to make the 170-pound welterweight division  The "Dolce Diet" seemed to do the trick as Thiago Alves came ready to fight and looked like a beast ready to smash some skulls.
    Last night Thiago Alves picked up a unanimous decision, 30-27 on all cards for the win against John Howard

    And Here Thiago Alves is wearing Husky Tools on his shorts.  Husky is now sponsoring this MMA Champ.

                                                photo by Ken Pishna http://mmaweekly.com

                                                photo by Ken Pishna http://mmaweekly.com





                                                Michael Elson
                                                President of Light Tool Supply
                                                Winner at Grapplers Quest
    If Husky is looking for another person to sponsor how about the President of Light Tool Supply, Michael Elson?  I am ready!  LOL.

    Looks like more Tool Companies are sponsoring MMA fighters these days.  It think it is a good match and smart of the big manufactures to take notice.  The latest is Husky Tools and Thiago Alves.  I always love watching Thiago Alves fight.  I am looking forward to seeing him wearing the Husky logo on his shorts.  It most certainly is good for The Tool Industry getting more exposure.  People who buy tools spend money and they also seem to like sports like Mixed Martial Arts.  Good luck Thiago and smart move by Husky picking a talented member of The MMA Community to represent their products.






    Husky Tools teams up with MMA Fighter Thiago Alves
    DEERFIELD BEACH, FLa. (Dec. 3, 2010) – On Dec. 11, 2010 in Montreal, Canada, Welterweight MMA Artist Thiago Alves will sport the Husky Hand Tools logo on his shorts as he takes on rival John Howard.

    Husky Hand Tools aligned itself with Alves because of the similarities in traits between the brand and the fighter:  hard working, diverse and powerful.

    “Because of all the upfront hard work and innovative powerful designs, Husky Hand Tools and Accessories continue to deliver reliable performance that helps to make tough jobs easier” said Iron Bridge Tools Karen Gough.  “Just like when you use a Husky Hand Tool, in Mixed Martial Arts success comes by combining power with finesse and reliability; and that is also the winning combination you get with the passionate and committed Thiago Alves.”

    Thiago Alves, a native of Brazil and current resident of Coconut Creek, FL has been a winning MMA Fighter for 12 years. With a 22-5-0 record, Thiago a UFC and AFC Veteran, has been King of the Cage, Mass Destruction Champion, Reality Fighting Champion, Shooto America Veteran, 3X Brazilian State Champion Muay Thai, and more.  Alves, a determined and ardent winner overcame a potentially career ending health issue earlier this year,  and through a comprehensive new diet and strengthening workout schedule, Alves is back to top form and ready to win the December 11th match up!

    Innovative, Reliable and Hard Working…that Means Husky Hand Tools and Thiago Alves!

    About Iron Bridge Tools and Husky
    Founded in 2006, Florida based Iron Bridge Tools has quickly become a worldwide marketer of innovative and top-quality hand tools and accessories. With offices throughout the United States and in China, Iron Bridge Tools produces branded and custom label tools available in leading retailers across the globe, including products marketed under the Husky line of hand tools, available exclusively at The Home Depot.  Husky products are well known for their quality, unique designs, durability and affordability.





    If Husky is looking for another person to sponsor how about the President of Light Tool Supply, Michael Elson?  I am ready!  LOL.

    Friday, December 3, 2010

    For 45 years, the name Electrix has been synonymous with quality lighting.

    To purchase click below
    http://www.lighttoolsupply.com


    7310




      For 45 years, the name Electrix has been synonymous with quality lighting. We have been manufacturing lighting fixtures since 1962 and first became involved with architectural luminaires during the 1980's when we started building functional lighting as a part of architecture.
    Our design features have always been influenced by the Scandinavian and European creative contributors of our in-house design staff. Over the years, Electrix has built a reputation for successfully collaborating with architects, designers, lighting consultants and engineers resulting in numerous quality lighting design solutions.



    Electrix is committed to fine Craftsmanship and
    Customer Satisfaction.

    Electrix products are designed, built and performance tested to the highest standards at our factory. From concept, to component and material selection, to production, our product quality and your project are our first priority. UL and CUL listings ensure electrical safety and adherence to codes.

    Our team of sales professionals offers comprehensive product knowledge and application assistance. We work closely with our sales representatives and specifiers to ensure competitive pricing and timely product delivery. Electrix is committed to satisfying you, the specifier. Our product range is diverse and our broad custom capabilities help to meet your architectural lighting requirements.



    Electrix is a fully integrated manufacturing facility. Our products are developed using state of the art CAD/CAM software and built in our manufacturing facilities in New Haven, CT. Superior design, engineering and manufacturing all contribute to building and manufacturing innovative lighting fixtures reflecting your style and design imagination. We welcome the opportunity to help develop your custom fixtures.



    7310
    Halogen Inspection Lamp with 3-Diopter Magnifier Lens with Base

    Model 7310 [ halogen ]
    Halogen Inspection Lamp with 3-Diopter Magnifier Lens with Base

    [ standard features ]
    • 3-Diopter Magnifying Lens (1.75 times magnification, 13" focal length, 5" viewing area )
    • 22" long flexible lamp reach
    • 14" reach magnifier
    • 50 watt low voltage Halogen bulb
    • 4" diameter shade - all metal construction
    • UVB filter enclosure
    • Integrated 12V transformer in 7"

    #Mitutoyo

    Largest selection of Mitutoyo Tools.
    If you don't see it, we can get it!



    Mitutoyo


    History
    Mitutoyo - A History of Metrology Leadership
    The world's largest metrology company was founded in 1934 by Yehan Numata with one product - the micrometer. Mitutoyo's philosophy at that time was to make the best mechanical micrometer in the world. But also to produce them in quantities that made them affordable and available to all of manufacturing so they could improve the quality of the products they manufactured. This philosophy was expanded in the next several decades to include a wider product offering focused on mechanical, dimensional gaging products. Mitutoyo focused its R&D and production efforts on creating the most advanced micrometers, calipers, indicators and other measurement tools in the world.
    As electronic technology became more widespread in the 70s, Mitutoyo applied electronics to its line of dimensional gaging equipment to include electronic, or digital, measuring tools. During this time it also began to offer larger, more complex and more sensitive measuring instruments, including optical comparators, form measuring equipment, and coordinate measuring machines. As statistical process control (SPC) was introduced, Mitutoyo led the world in the development of output gages, interfaces, data collectors and analysis software to take advantage of this new metrology science.
    When the computer made its way into the field of metrology, Mitutoyo again shifted its focus to include this technology into its product offering and push measuring accuracies into the sub-micron range. Today, Mitutoyo presents its 6,000+ products as integrated, computer-based metrology systems, where they can be interconnected to form closed-loop-measuring networks.
    Mitutoyo America Corporation was formed in 1963 and is headquartered in Aurora, Illinois (just outside of Chicago). Mitutoyo America offers the full product line of precision measuring tools, instruments and equipment with a distribution network, training and education classes, software development, and service support to provide a comprehensive metrology organization.
    As the leading metrology company in the world, Mitutoyo is committed to future product development that applies breakthrough technologies to its full range of dimensional measurement tools, instruments and systems.
    Dr. Yehan Numata is also the founder of the Buddhist Canon Translation Project.

    The Mitutoyo Philosophy

    The Mitutoyo Corporate Philosophy is essentially the perpetual 'core values' that our organization and employees shall uphold.
    It unites all the Mitutoyo Companies and their employees throughout the world in a common understanding and commitment.


    Our Founding Spirit
    To contribute to people's welfare through support of the advancement of Buddhist understanding.
    To see that Mitutoyo excels in its field of expertise and in its business conduct throughout the world.
    ƒy�[ƒW‚Ì�擪‚Ö
    Our Principles
    To contribute to the wellbeing of society through precision measurement technologies
    We shall conduct our business based on the following values to:
    Provide solution engineering to support our client business development
    Contribute globally to the advancement of industrial measurement capability
    Cultivate healthy relationships and common prosperity with trading partners
    Support and promote global peace, human happiness and harmony with the environment.
    Apply business practices that reflect the integrity of Mitutoyo and our world leading brand.
    Nurture a vibrant corporate culture that inspires a passion in our personnel to do their best, to be the best.


    ƒy�[ƒW‚Ì�擪‚Ö
    Our Corporate Motto
    "Good environment, Good people, Good technique"
    Our Guiding Precepts
    "Sincerity, Thoughtfulness, Determined Spirit"
    ƒy�[ƒW‚Ì�擪‚Ö
    Mitutoyo Group Ethical Conduct Code
    Mitutoyo Group Ethical Conduct Code sets forth ethical criteria of judgment and conduct that all executives and employees at Mitutoyo group must observe in every aspect of corporate activities. We at Mitutoyo group will conduct ourselves in a manner which complies with the Ethical Conduct Code and choose the ethical way without exception whenever a business decision involves a conflict between profit and ethics.
    1. Relationship with customers
    We will supply our products and services in compliance with both our internal rules as well as all relevant laws and regulations that apply to quality, safety, reliability and environmental protection wherever we operate.
    We will immediately make every effort to prevent damages/losses from developing and problems from recurring by following these prescribed measures in case a problem occurs.
    Investigating the facts
    Identifying the cause and the responsibility
    Communicating to those concerned including the parties outside Mitutoyo
    2. Relationship with business partners
    [1] Sales business partners (Business partners associated with sales, e.g. distributors)
    We will enter into contracts fairly with sales business partners in compliance with relevant laws and regulations and fulfill our obligations under such contracts.
    We will refer to internal rules when offering entertainment or gifts to a sales business partner. We will not give accommodation such as rebate or commission in exchange for a personal benefit.
    [2] Procurement business partners (business partners associated with development, purchasing, production and physical distribution)
    We will determine procurement business partners based on rational, fair and transparent criteria.
    We will enter into contracts with procurement business partners fairly in compliance with relevant laws and regulations.
    We will not make use of our advantageous position to impose unfair restrictions or requests on procurement business partners.
    We will refer to internal rules if we receive entertainment or gifts from a procurement business partner and will strictly behave in a manner that avoids misunderstanding by a third party.
    3. Maintaining and promoting free and fair competition
    We will not behave in a manner that creates obstacles to free and fair competition in compliance with relevant laws and regulations.
    4. Handling of Intellectual property rights
    [1] Intellectual property rights of Mitutoyo group
    We will appropriately protect and utilize the intellectual property rights of Mitutoyo group.
    [2] Intellectual property rights of others
    We will respect the intellectual property rights of others and make every effort not to infringe upon such rights.
    5. Handling of confidential information
    [1] Trade secrets
    We will identify what should be controlled as the trade secrets of Mitutoyo group in the know how, technical and business information and protect such trade secrets strictly and appropriately.
    We will strictly protect confidential information of others acquired through business transactions with them and will not pass such information to other parties nor we will illegally seek access to trade secrets of others.
    [2] Personal information
    We will strictly and appropriately protect personal information in compliance with relevant laws, regulations and internal rules.
    [3] Insider information
    We will not deal in securities based on insider information.
    6. Stance to anti-social individual/group
    We will shut out any relationship with corrupt individuals and entities that pose a threat to social order and safety.
    7. Relationship between the company and employees
    [1] Respect for human rights
    We will respect fundamental human rights and will not behave in a manner that might imply discrimination or abuse of the dignity of individuals.
    We will not misuse the power of a superior position nor behave in a manner that might be considered as discriminatory practice or mental abuse or physical violence or sexual harassment.
    [2] Exclusion of unfair labor practice
    We will abide by labor laws and regulations and will never commit illegalities such as unfair labor practice, forced labor, or child labor in any aspect of our corporate activities.
    [3] Safety and health at workplace
    We will abide by the related laws and regulations, and maintain and improve working environments for all employees to protect them from industrial injury, both physical and mental.
    [4] Respect for the opinions of others
    We will respect personality and opinions of others and welcome anyone expressing proposals, concerns, and complaints.
    We will express proposals, concerns, and complaints in a manner which respects the rights and dignity of others.
    We will not allow anyone who expresses opinions to be put at a disadvantage.
    [5] Responding to illegal or unethical conduct
    We will inform our immediate superior of the fact or refer it to the "Helpline" without delay in case we come across any conduct that we suspect is illegal or violates our ethics policy.
    We will refuse any order to commit illegal or unethical acts, and refer such incidents to the "Helpline" when put at a disadvantage for our refusal to commit such acts.
    8. Social Responsibility
    [1] Complying with laws and regulations aimed at contributing towards world peace
    We will comply with all laws and regulations aimed at maintaining world security and peace. We will not engage in any business transaction that threatens the maintenance of world peace.
    We will strictly control our export activities, both goods and services in compliance with relevant laws, regulations and our internal export control program.
    [2] Global environment preservation
    We will make every effort including internal education of employees to reduce adverse effects on the environment in every aspect of our business by taking the following measures.
    Energy saving
    Reduction of waste
    Recycling of waste
    We will promote our environmental preservation activities.
    [3] Contributing to industry/technology
    We will contribute to the development of science, technology and industries of the world by advancing the technology of precision measurement.
    We will contribute to the promotion of science and technology in the world through financial support of institutional research.
    We will positively promote the diffusion and succession activities of technology and technical skills related to precision measurement.
    9. Conflict of interest
    Employees will not engage in any activity that might create a conflict of interest for the company or for themselves individually.
    The board of directors are banned from being involved in our competitors' business and other businesses whose interests might conflict with those of Mitutoyo Group without consent of Mitutoyo Corporation Japan.




    Numata Memorial Hall

    This unique history museum of measuring instruments exhibits a large variety of materials and measuring instruments that illustrate the philosophy behind Mitutoyo's founding and the company's 60-year history. The museum's collection, which consists mainly of actual articles that bear witness to the company's history, boasts over twenty thousand items.


    Mitutoyo Museum

    This museum opened in November 1990 to celebrate the 50th anniversary of the Mizonokuchi Plant in Kawasaki (now the company's headquarters, Kawasaki Research and Development Center).
    This is a unique industrial museum that introduces measuring instruments from all over the world and shows their evolution.
    The museum collects precision measuring tools, related technical materials, pictures, books, catalogs, and so on, from the entire world and dating as far back as the 19th century, and exhibits representative items. The museum also features an experiment corner.

    The world's precision measuring tools


    Utsunomiya Plant's History Museum

    This museum, which was opened in May 1999 to celebrate the 50th anniversary of the Utsunomiya Plant, has as one of its purposes the preservation of historical artifacts consisting of major products.
    The major products born at the Utsunomiya Plant are on exhibit, introducing visitors to the plant's historical evolution and Mitutoyo as a company. The museum also features an experiment corner.

    A1CMM (left) and early caliper (right)


    Environmental Initiatives

    Environmental conservation policies

    Following the corporate motto, "Good environment, good people, good techniques," the entire company is working toward global environment conservation as one of the major themes of Mitutoyo's corporate activities.

    (1) Comply with environmental regulations and other related requirements, and continually strive to prevent pollution.
    (2) Establish environment-related goals to minimize environmental burdens, periodically review these goals, and work to further improve our environmental management system.
    (3) Seek to develop more environment-friendly products.
    (4) Make effective use of natural resources, improve energy efficiency, reduce use of toxic substances and disposal of waste, and promote recycling and re-utilization of materials.
    (5) Educate employees in environmental issues, raise environment safety awareness, and increase environmental expertise.

    Environmental management system

    MITUTOYO established its company-wide environmental management system in 1999, and has since been active in environmental protection activities centered on developing more environment-friendly products and reducing the environmental impacts of our facilities.

    Organization Chart of Company-Wide Environmental Management System


    Green procurement

    At MITUTOYO, we are seeking to develop more environment-friendly products that minimize environmental impacts in various ways. One way is by promoting "green procurement" activities, which emphasize using environment-friendly parts and materials.

    Environment-friendly products

    MITUTOYO actively promotes the application of the European RoHS Directive (a directive of the European Parliament and the Council of the European Union that restricts the use of specific hazardous substances in electrical and electronic equipment), and currently offers RoHS-compliant products such as the following.

    Super Caliper

    Super Caliper
    Digital Micrometer

    Digital Micrometer
    Micrometer Head

    Micrometer Head
    Top


    Produce the able person before creating a product.

    Mitutoyo Institute of Metrology
    "The able person must be raised first before a product can be created." This is one of the philosophies advocated by Yehan Numata, the founder of Mitutoyo Corporation. "Good environment, Good people, Good techniques." is also a corporate motto at Mitutoyo.

    Being the world leader in Metrology, Mitutoyo Corporation has produced high-quality products using leading-edge technologies, and at the same time has promoted continuous education in Metrology so that anyone interested in the theory or application of measuring instruments may further develop his or her interest. Mitutoyo established the Mitutoyo Institute of Metrology which is a unique precision measurement engineer training organization. The enrolled engineers are expected to learn the correct usage of measuring instruments that must meet the needs of ever-advancing technologies in production field.

    Mitutoyo Institute of Metrology was opened in 1975 in Japan, and to date, it has been established in eight countries: U.S.A., Mexico, Brazil, Singapore, Taiwan, Italy, U.K. and Germany. The Institute prepares the comprehensive curriculum, which primarily consists of practice sessions, and uses state-of-the-art measuring instruments for all practice sessions, taking advantage of its resources as a leading manufacturer of precision measuring instruments. Full-time instructors with extensive knowledge and expertise in Metrology deliver enthusiastic lectures. The entire staff of the Institute appreciates the enthusiastic participation of many clients and students from all countries.

    Mitutoyo recognizes the significance of existence and importance of the role of the Institute of Metrology with regard to the demands of the clients. Mitutoyo intends to continuously promote the ongoing efforts at the Institute of Metrology. For more information, please contact the Mitutoyo Institute of Metrology in each country listed below.
    JAPAN SINGAPORE TAIWAN
    JAPAN SINGAPORE TAIWAN
    TEL:81(044)822-4124
    FAX:81(044)822-4000
    E-mail:gakuin@mitutoyo.co.jp
    TEL:(65)6294-2211
    FAX:(65)6294-7576
    E-mail:mapsg@mitutoyo.com.sg
    TEL:886(2)2299-5268
    FAX:886(2)2299-5266
    E-mail:technical@mitutoyo.com.tw
    U.S.A. MEXICO BRAZIL
    U.S.A. MEXICO BRAZIL
    TEL:1-(630)820-9666
    FAX:1-(630)978-6471
    http://www.mitutoyo.com
    TEL:52(55)5312-5612
    FAX: 52(55)5312-3660
    E-mail:imm@mitutoyo.com.mx
    TEL:55(11)5643-0000
    FAX: 55(11)5641-3722
    E-mail:treinamento@mitutoyo.com.br
    ITALY U.K. GERMANY
    ITALY U.K. GERMANY
    TEL:39(02)93578221
    FAX: 39(02)93578250
    E-mail:mim@mitutoyo.it
    TEL:44(1926)450044
    FAX: 44(1926)450476
    E-mail:enquiries@mitutoyo.co.uk
    TEL:49(0)2137-102405
    FAX:49(0)2137-102351
    E-mail:s.vonester@mitutoyo.de
    Top
