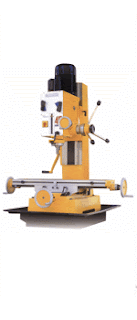

Geared Head Milling Machine

Specifications:
Face mill capacity: 3"
Swing: 21"
Max.distance:
Spindle to table: 18-1/2"
Spindle to taper: R-8
Spindle stroke 5"
Table size: 32" x 9-1/2"
Table travel: 20" x 9"
Quill diameter: 3"
Spindle speeds: (6)75-1600 RPM
T-slot size: 5/8"
Motor: 1 HP, 110/220 1 Ph
Weight: 750 Lbs
Milling Machines
# pecifications:
Face mill capacity: 3"
Swing: 21"
Max.distance:
Spindle to table: 18-1/2"
Spindle to taper: R-8
Spindle stroke 5"
Table size: 32" x 9-1/2"
Table travel: 20" x 9"
Quill diameter: 3"
Spindle speeds: (6)75-1600 RPM
T-slot size: 5/8"
Motor: 1 HP, 110/220 1 Ph
Weight: 750 Lbs
http://www.lighttoolsupply.com
Column - Swivel Head 90°
http://www.lighttoolsupply.com
* Milling, drilling, tapping, boring, reaming.
* Capacity, cast iron: 1-9/16", mild steel: 1-1/4".
* Massive 3" diameter quill.
* Zero setting dials.
* Full 5" spindle stroke.
* 21" swing.
* Head tilt 90 degrees right and left.
* Forward/reverse switch.
* Zinc alloy handle wheels.
*Fine downfeed calibrated
